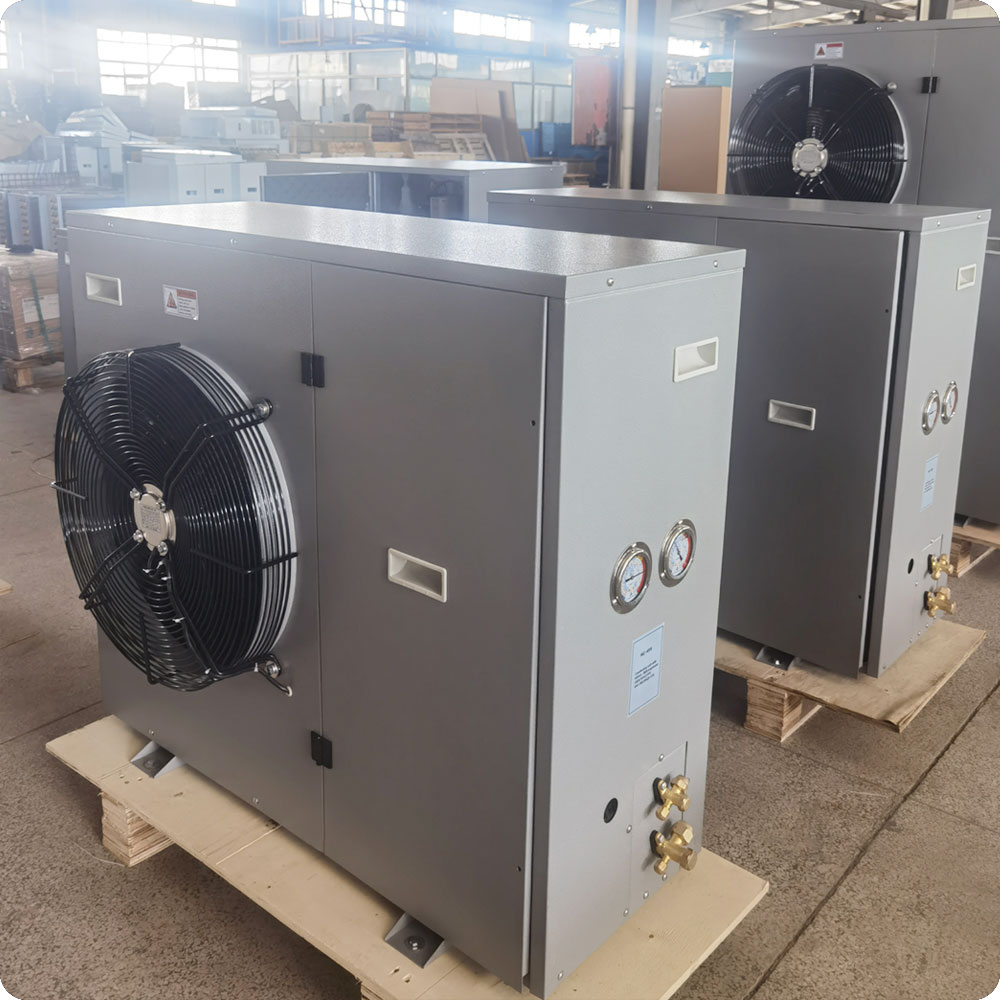

Roof-mounted Mono Block Condensing Unit
Wall-mounted Mono blocks condensing unit can fit the temperature of -5℃~+5℃and -15℃~-25℃. It is suitable for small cold storage, such as hotels, hygiene, medicine, agriculture, chemical and other industries.
Refrigeration Unit
The best commercial refrigeration equipment for a fruit and vegetable storage area
Our condensing units have medium temperature (-15°C~-18°C), low temperature (-18°C ~-25°C) and high temperature (0°C ~5°C). It is equipped with the original new best brand compressor, such as Danfoss, Emerson, Panasonic, with high efficiency corrosion proofing design evaporator and condenser.
Product model：XWM80
Features：
Type: Hermetic scroll or reciprocating piston compressors
Compressor type : single compressor
Compressor Series: standard
Customization：support
Refrigerant：R22, R404A, R448A, R507A.
Compressor brand：Danfoss, Emerson, Panasonic, etc.
Color：outside white
Application：small or medium type cold storage, plant room, etc.
Function: cooling & freezing
Item: Condensing unit
After Warranty Service：Video technical support/Online support
Certification：UL CE
The best commercial refrigeration equipment for a fruit and vegetable storage area.
Our condensing units have medium temperature (-15°C~-18°C), low temperature (-18°C ~-25°C) and high temperature (0°C ~5°C). It is equipped with the original new best brand compressor, such as Danfoss, Emerson, Panasonic, with high efficiency corrosion proofing design evaporator and condenser.
| Medium and High Temperature Air-cooled Condensing Unit Scroll Series | |||||
| Model of Units | XWM-80S | XWM-100S | XWM-120S | ||
| Compressor Model | VR94KSE | VR125KSE | VR144KSE | ||
| Applicable Evaporation Temperature(℃) | -15℃-10℃ | ||||
| Power Supply | 3PH 380V 50HZ | ||||
| Compressor | Quantity of Fan | 2×φ500 | |||
| Air Volume(m3/h) | 6700×2 | ||||
| Power of Fan(W) | 390×2 | ||||
| Ref.Capacity of condensing units | Evaporating Temperature 0℃ | Ref.Capacity(W) | 19200 | 25960 | 28910 |
| electronic power(W) | 5340 | 7560 | 9120 | ||
|
Evaporating Temperature -5℃ |
Ref.Capacity(W) | 15850 | 21720 | 24210 | |
| electronic power(W) | 5210 | 7340 | 8840 | ||
|
Evaporating Temperature -15℃ |
Ref.Capacity(W) | 10040 | 14490 | 16050 | |
| electronic power(W) | 5110 | 7050 | 8460 | ||
| Coupling | Tube coupling | φ16 | φ16 | φ19 | |
| Suction coupling | φ22 | φ22 | φ28 | ||

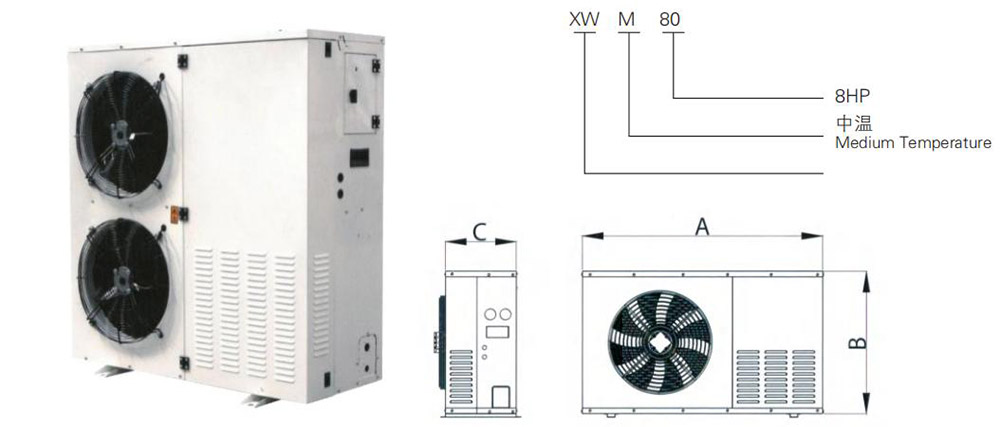

| Overall dimension | Length(mm) | 1100 | |||
| Width(mm) | 500 | ||||
| Height(mm) | 1230 | ||||
| Installation dimension | Length(mm) | 730 | |||
| Width(mm) | 530 | ||||
Hotels,
Garment Shops,
Building Material Shops,
Machinery Repair Shops,
Manufacturing Plant,
Food & Beverage Factory,
Farms,
Restaurant,
Home Use,
Retail,
Food Shop,
Printing Shops,
Construction works,
Energy & Mining,
Food & Beverage Shops,
Advertising Company
Wall-mounted Mono blocks condensing unit can fit the temperature of -5℃~+5℃and -15℃~-25℃. It is suitable for small cold storage, such as hotels, hygiene, medicine, agriculture, chemical and other industries.
1Our Bitzer condensing units have medium temperature (-10°C~+10°C), low temperature (-10°C ~-35°C) and deep blast temperature (-25°C ~-45°C). It is equipped with the original new Bitzer compressor, high efficiency corrosion proofing design evaporator and condenser. What’s more, for other accessories, we stick to best brand, such as Danfoss, Siemens, Schneider, Weinview.
Wall-mounted Mono blocks condensing unit can fit the temperature of -5℃~+5℃and -15℃~-25℃. It is suitable for small cold storage, such as hotels, hygiene, medicine, agriculture, chemical and other industries.
The best commercial refrigeration equipment for a fruit and vegetable storage area Our condensing units have medium temperature (-15°C~-18°C), low temperature (-18°C ~-25°C) and high temperature (0°C ~5°C). It is equipped with the original new best brand compressor, such as Danfoss, Emerson, Panasonic, with high efficiency corrosion proofing design evaporator and condenser.
Best selling industrial refrigeration equipment for fruit & vegetable store room Our Bitzer condensing units have medium temperature (-10°C~+10°C), low temperature (-10°C ~-35°C) and deep blast temperature (-25°C ~-45°C). It is equipped with the original new Bitzer compressor, high efficiency corrosion proofing design evaporator and condenser. What’s more, for other accessories, we stick to best brand, such as Danfoss, Siemens, Schneider, Weinview.
Best selling industrial refrigeration equipment for fruit & vegetable store room Our Bitzer condensing units have medium temperature (-10°C~+10°C), low temperature (-10°C ~-35°C) and deep blast temperature (-25°C ~-45°C). It is equipped with the original new Bitzer compressor, high efficiency corrosion proofing design evaporator and condenser. What’s more, for other accessories, we stick to best brand, such as Danfoss, Siemens, Schneider, Weinview.
We are factory which is established in 1993 with more than 30 years industry experience
